Albion Industries Product Catalog
Specialty Frames & Rails
Extra-Tall 10" Frames
These frames are 10 1/2" tall with extra-large adjustable headboard brackets and special glides.
ALB 3/3 XT: Twin; 4 legs
ALB 4/6 XT: Full; 5 legs
ALB 5/0 XT: Queen; 7 legs
ALB 6/6 XT: King; 10 legs
CS 822 XT: Queen-King; 8 legs
Low Profile Frames
Low-profile frames sit 3 1/2" off the floor and can be made from most Albion frames—just add “Lo-Pro” to the end of the frame number when ordering. These frames use an adjustable-height glide, allowing for minor height adjustments. Other heights are available upon request.
Add $3.50 to the base frame price for low-profile models.
Bed Rails Hook-on (H/O) or Bolt-on (B/o), No legs
Albion bed rails are built from durable 2" x 1½" angle steel and come equipped with either or a center support, depending on the model. Each set is packed one unit per box for easy handling.
All bed rails and headboard/footboard frames are also available in a Combo version, which includes both hook-on and bolt-on brackets in the box—making your inventory more versatile and hassle-free.
To order a Combo model, simply add “Combo” to the end of the frame number.
76" H/O or B/O: Twin-Full, with cross wires
Queen H/O or B/O: Queen, with cross wires
TXL H/O or B/O: Twin Extra Long, with cross wires
Headboard & Footboard Frames and Rails
All models feature center supports with adjustable-height legs and heavy-duty 2" x 1½" side rails. Some models also include adjustable brackets. Brackets are designed with 2½" and 4" hole centers for compatibility.
For beds where the bottom of the box spring is 9¼" off the floor or less, use standard-height models.
For beds up to 13" off the floor, choose Extended Length (EXL) models.
All models are available as Combo versions, which include both hook-on and bolt-on brackets for maximum flexibility.
Specify Hook-on (H/O), Bolt-On (B/O), or Combo.
BTF2: 2 legs; center support adjust Twin to Full
BTF2-EXL: Tall model
Q2L: Queen rails with a center bar that has 2 legs
Q2L EXL: Tall model
Q3SL: Queen rails with 3 cross bars (1 leg per cross bar); perfect for Split Queen bedding
Q3SL EXL: Tall model
QK-CS: Queen-King rails; 2 legs (1 in the middle at the head and foot end); double center support bars run head-to-toe
QK-4L: QK-CS with 2 additional legs on the center of the double support bars
QK-4L EXL: As above but with longer legs
QK-8L: Queen-King rails; 8 legs (1 in each corner and 4 in the middle)
QK-8L EXL: As above but with longer legs
Headboard and Footboard Frames for Wood or Metal Beds
These are free-standing frames for Hook-On or Bolt-on beds with a headboard and footboard. They use heavy 2" x 1 1/2" side rails. The brackets have both 2 1/2" and 4" mounting hole centers. All Hook-on models are adjustable in width also. These frames are available as combo's, meaning they will include hook-on and bolt-on brackets. Combo's will come with adjustable height glides and brackets. Specify Hook-on (H/O), Bolt-on (B/O), or Combo.
D322 3/3-4/6: Twin-Full; 4 legs
D322 5/0: Queen; 5 legs
D322 6/6: King; 9 legs; Bolt-on only (for Hook-on use QK-8L H/O) or QK10L
Conversion Rails
Use these rails to allow Queen-sized bedding to be used with Full-sized headboard and footboard. Specify Hook-on (H/O) or Bolt-on (B/O).
Converta: 1 cross bar; 2 legs
Converta W/CS: As above but with 3 cross supports and 2 legs on each cross support. this model must be used for Split Queen bedding
Center Supports for Standard Frames and Bed Rails
CXL-PLG: 3 legs; center support bolts into any Albion 4-leg frames that goes to Queen (e.g., BBTQ, TQP, ZOP, FM 322, etc.)
Center Supports for Steel Bed Frames and Bed Rails
These center supports feature adjustable-height glides and are designed to work with any angle side rail—no existing holes required. They can be bolted to the side rail if holes are present or clamped securely if not, offering a versatile fit for a wide range of bed frames.
For beds 5 3/4" to 9 1/4" off the floor:
6L-4/6: 2 legs; Full-sized center support
6L-5/0: 2 legs; Queen-sized center support
For beds 13" off the floor or less:
6L-4/6 EXL: 2 legs; Full-sized center support; extra tall
6L-5/0 EXL: 2 legs; Queen-sized center support; extra tall

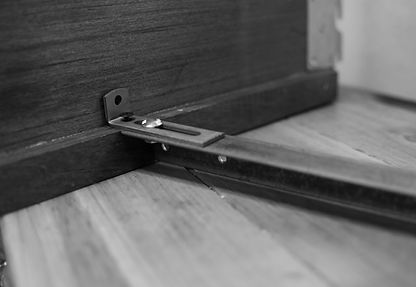

Center Supports for Wood or Upholstered Side Rails
These supports are designed to properly reinforce imported beds with lightweight side rails, wood slats, and legs. A wood cleat or lip on the side rail is required for installation.
Standard-height supports fit beds up to 13" off the floor. Taller leg options are available—please contact the office with specific requirements.
All legs include adjustable-height glides for added stability and flexibility.
WCS: Full-Queen; 2 legs; 1 set per box
WCS-EXL: As above but with longer legs
Wood QK: Queen-King; 4 legs (1 in the center at the head and foot ends and 2 in the center of the bed); double center support head-to-toe
Wood QK-EXL: As above but with longer legs
K 35: Queen-King; 9 legs (3 cross supports with 3 legs each)
K 35 EXL: As above but with longer legs
QK-12L WCS: 4 cross bars with 3 legs each. Bars tie together 12 legs total. Ultimate support for Queen, Cal King, and King bedding when used on the imported bed sets.
Hook-on Headboard Only Frames
Designed for headboard-only beds, these frames feature hook-on brackets in place of standard bolt-on brackets. They are adjustable in both height and width for a flexible fit across various bed sizes.
4HQ: 4 legs; Twin - 3/4 (48") - Full - Queen; adjustable height glides
6HQK: 6 legs; Queen-King; double center support
Waterbed Frames
These frames are ideal for hybrid-style waterbeds or any application requiring extra support. Each model includes High Strength Easy Slide Glides for durability and adjustable headboard brackets for added versatility.
WB 7L: 7 legs; Twin to Queen
WB 5/0: 9 legs; Queen; 2" x 75" side rail
WB 6/6: 10 legs; King; 2" x 75" side rail
